Create Network With Private IP

Create a server with a Private IP

First of all, create a private network

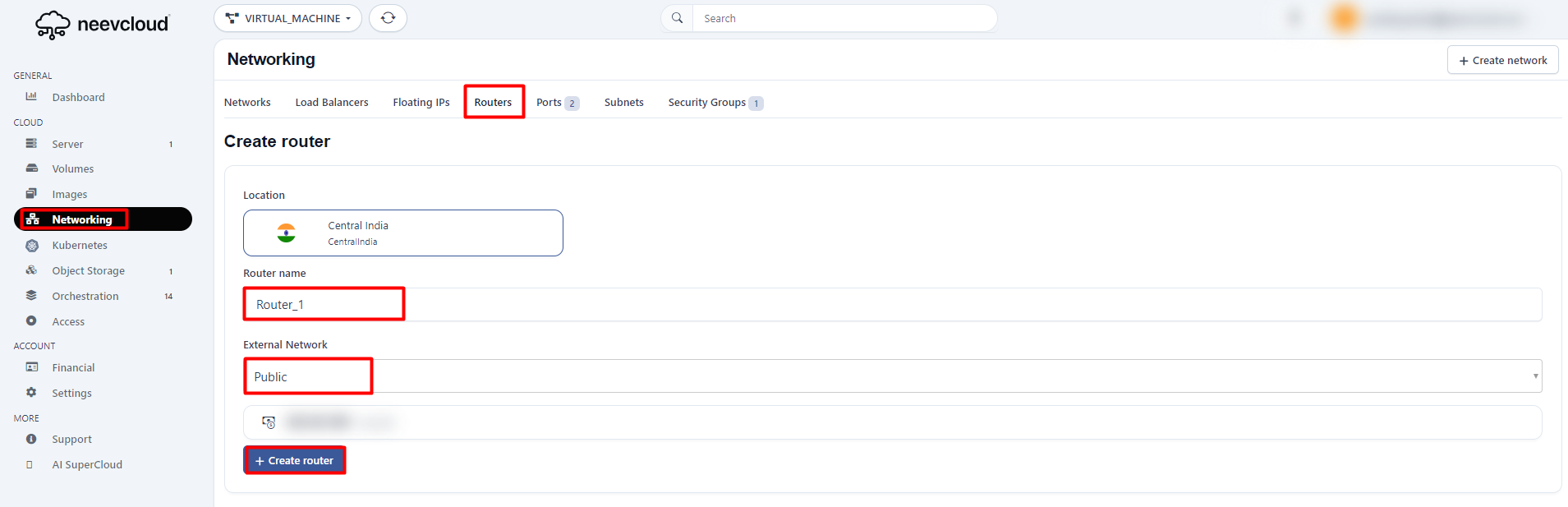

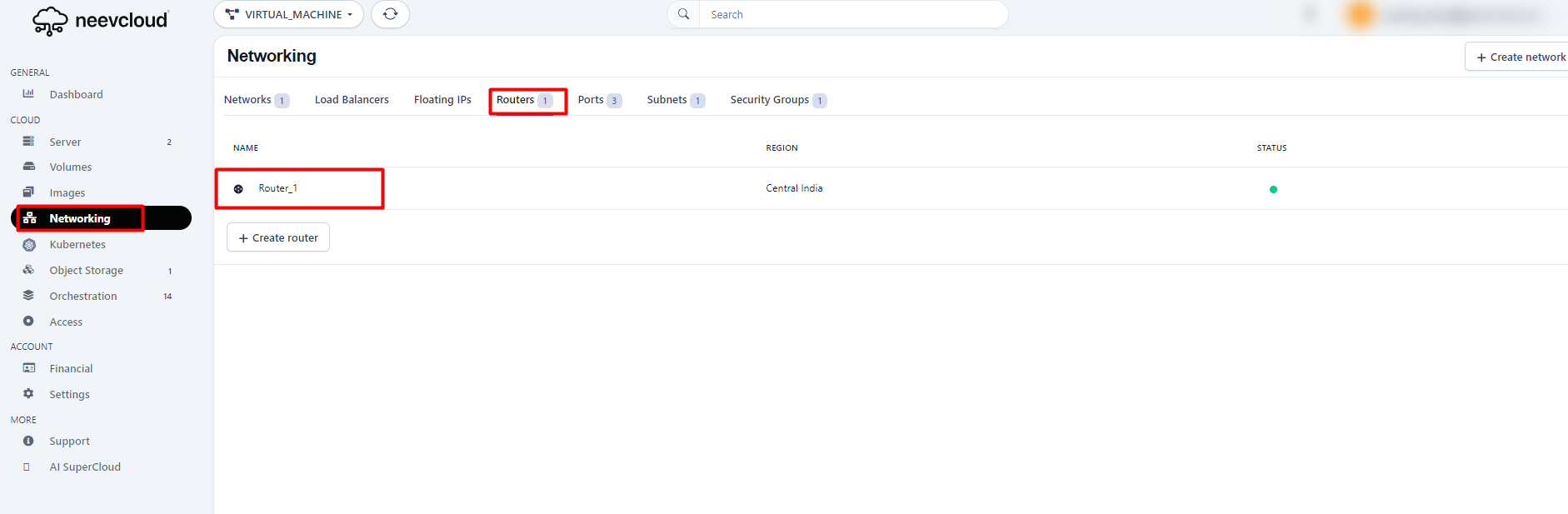

Create a Router

To navigate to the networking section to select the Routers.

Create a Network

Navigate to the networking section to select the network.

Add Network Interface to the Router

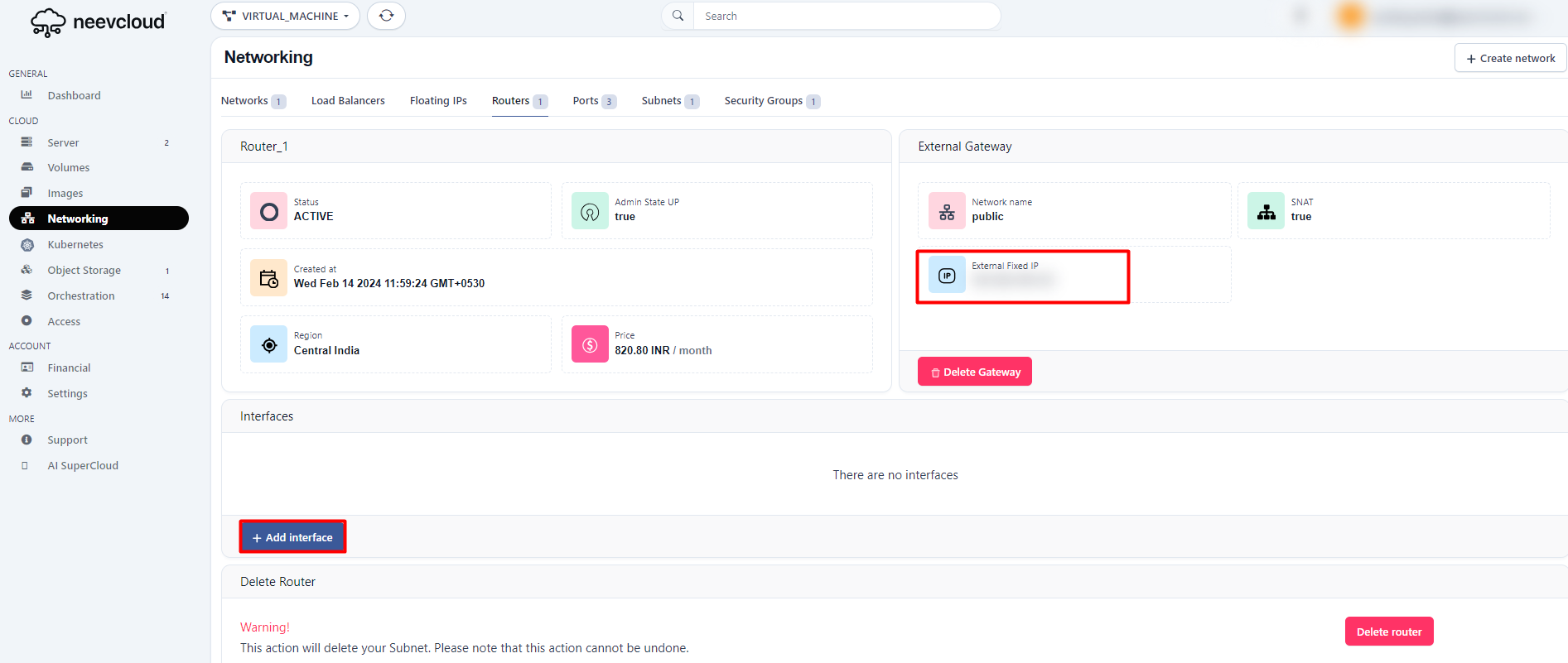

After setting up the network and router, navigate to the router and open the router to add a network interface.

Added the interface, the status has been active for some time.

Create a server

Creating the Server: All Processes are the Same, Only change Networking from Public to Private to create a server to follow these links.

NOTE:- Here we can Select the Private IP.

When you have created the server, navigate to the server and select Overview. You will observe that the IP address is private.

Access the Server's External IP Add

To access the server from outside, you need to create a Floating IP and attach it to the server.

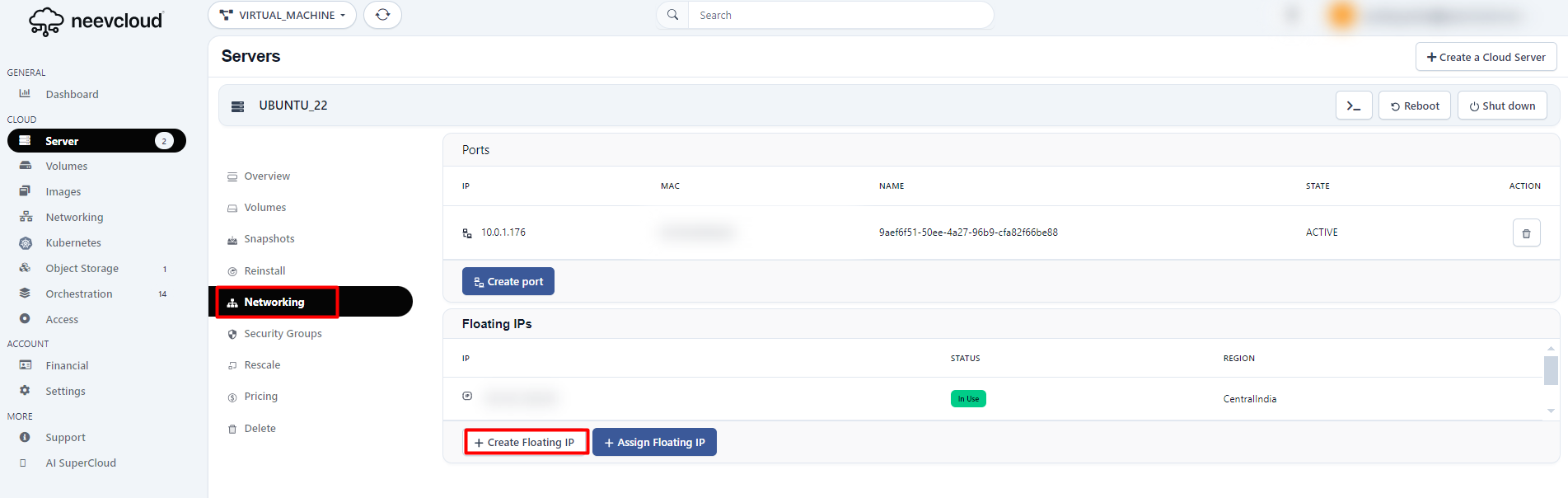

Open the networking section to get started on the server. You can attach an already-owned Floating IP. Otherwise, select Create floating IP to start one.

Note:- By creating a floating IP, you will get access to VM.

To create Floating IPs follow these links.

To Assign Floating IPs follow these links.

Then, How to access the VM, follow these links:-
