# How to Integrate QNAP NAS storage and Backup to Neevcloud

Prerequisites

Neevcloud Bucket - see our [Bucket Create Guide](https://docs.neevcloud.com/neevcloud-products/storage/object-storage/create-bucket)

Access & Secret Key- See our [Access Creation Guide](https://docs.neevcloud.com/neevcloud-products/access-details/s3-ec2-credentials/create-s3-ec2-credentials)

REST Endpoint to follow these [links](https://docs.neevcloud.com/neevcloud-products/storage/object-storage/service-urls-for-neevcloud-s3)

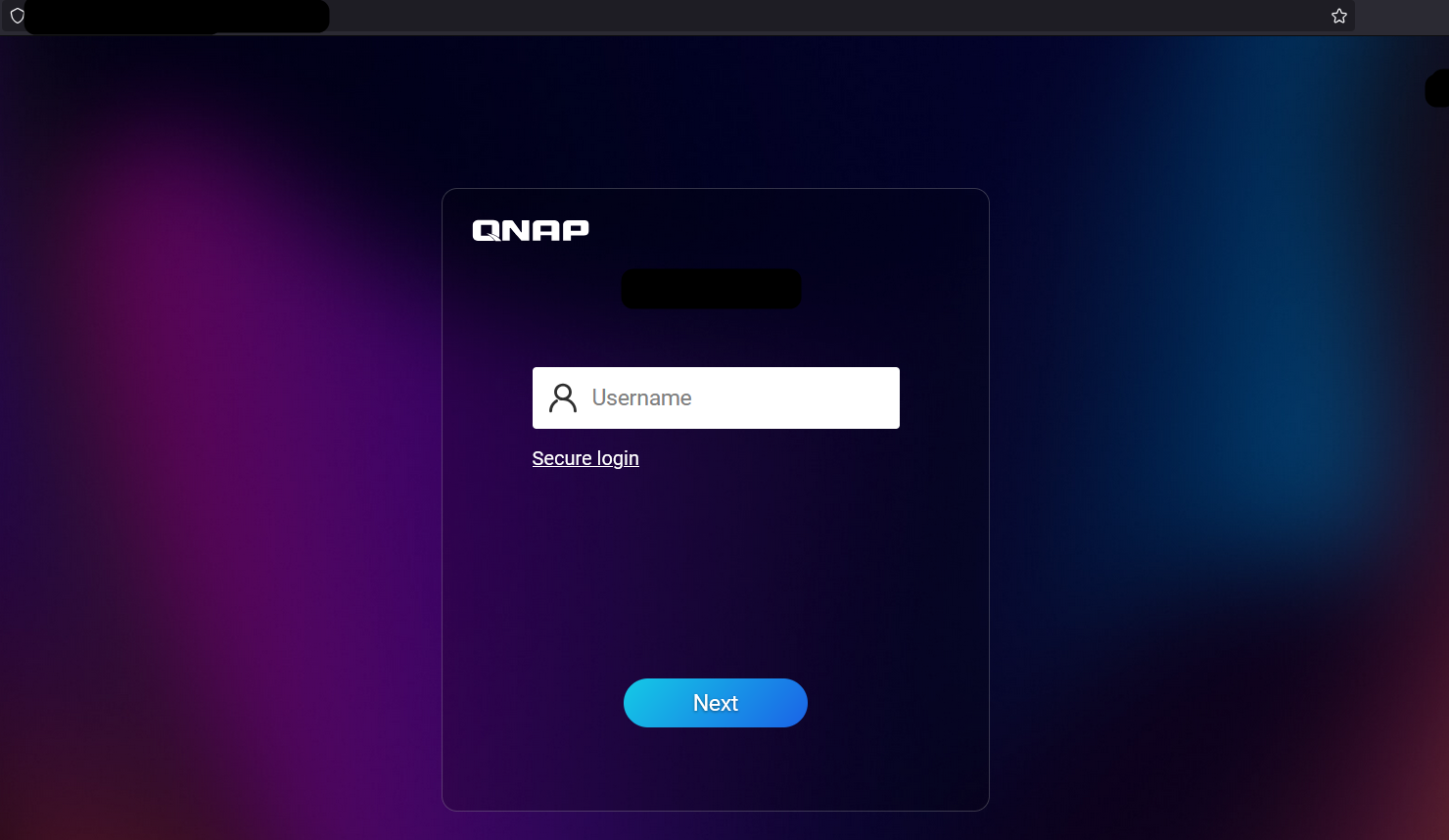

After successfully setting up the QNAP system, log in with your username and password.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FLqNrHryguAkeEPUttzgF%2Fimage.png?alt=media&#x26;token=d98a316c-1752-45e8-86fb-ee9b8bbea2b2" alt=""><figcaption></figcaption></figure>

You may now proceed with the following steps to configure the backup and restoration process.

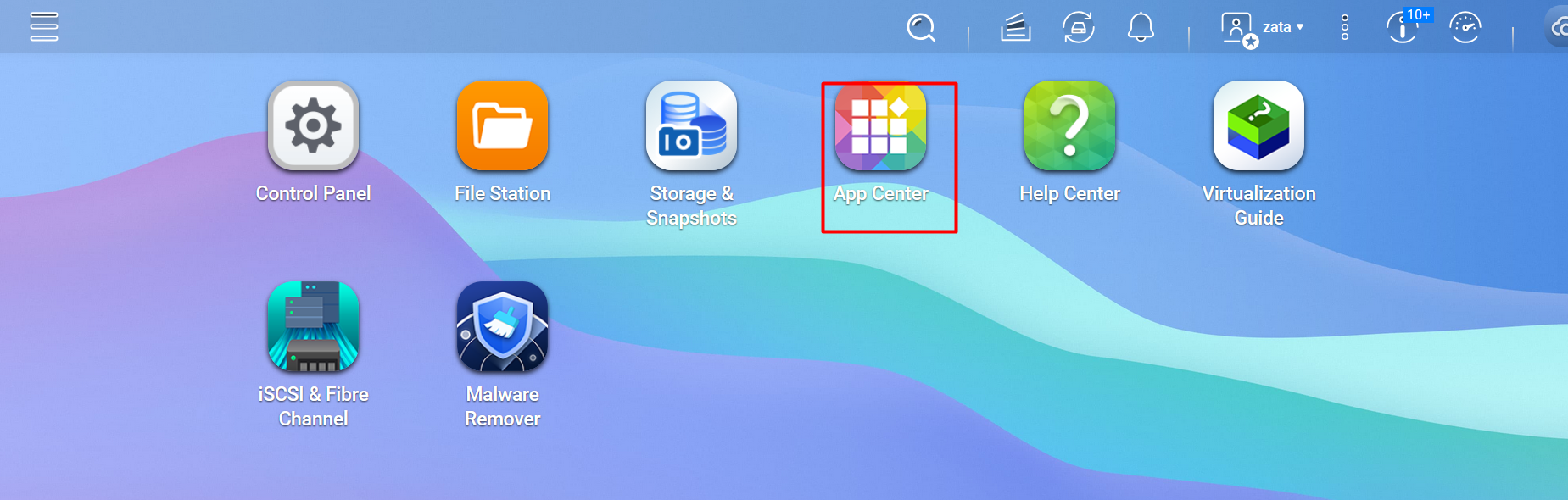

Navigate to the App Center and install **HBS 3 Hybrid Backup Sync** to proceed with backup configuration.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FFesphuFG40rR8Se6NXhz%2Fimage.png?alt=media&#x26;token=6d5270a0-6b4b-4dd0-a214-08b299f8364d" alt=""><figcaption></figcaption></figure>

Open the App Center, search for **HBS 3 Hybrid Backup Sync**, and proceed with the installation.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2Fkg4Cn3rAfLFMW3NIYWzQ%2Fimage.png?alt=media&#x26;token=d11c073f-9045-4391-9869-20624d5f9920" alt=""><figcaption></figcaption></figure>

Now, back to the **Backup/Sync** section and launch **HBS 3 Hybrid Backup Sync** to begin configuration.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FsxdPkJbxH19heNW7XXo6%2Fimage.png?alt=media&#x26;token=60959386-a633-4d28-85ce-b4469dfaa0f4" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2Fe2l97YJAfwLjxYFZ76Ws%2Fimage.png?alt=media&#x26;token=ceff1f51-be5b-4f53-9edb-8f688c795a52" alt=""><figcaption></figcaption></figure>

Navigate to **Storage Spaces**, then select and create a new storage space as needed.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FL75VNDRtc70CdKItVWPD%2Fimage.png?alt=media&#x26;token=cfc9771f-dcc3-40db-a276-f775128b1dc5" alt=""><figcaption></figcaption></figure>

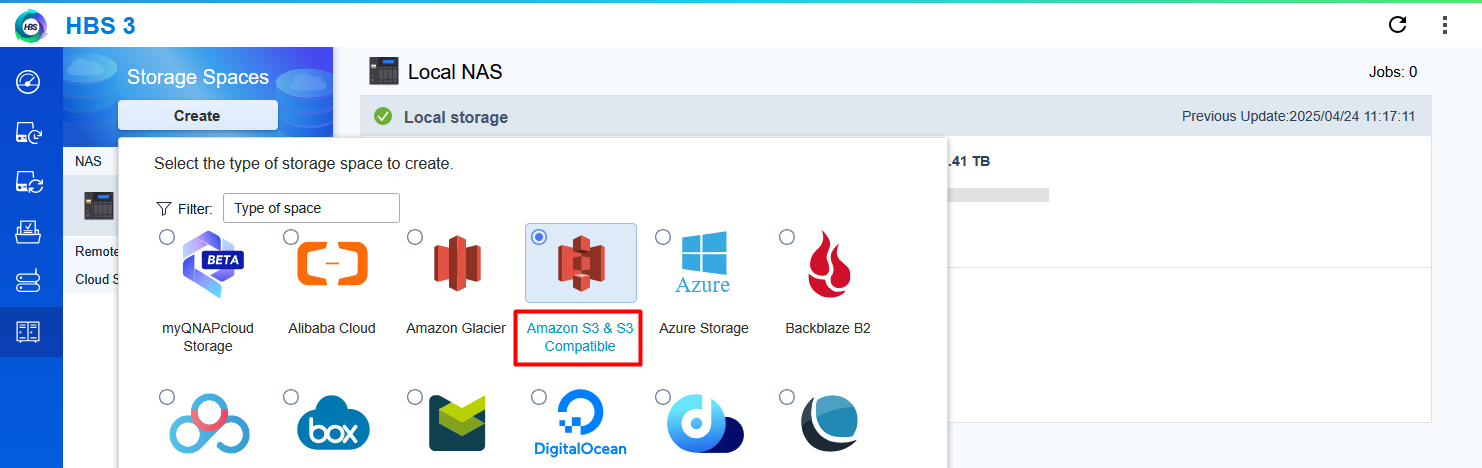

Select **S3-compatible storage** from the available storage options.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FfyJ12mK7YPl0pqWAvFXL%2Fimage.png?alt=media&#x26;token=ce7a505e-2d55-40fb-ba56-f1ed0a3aa861" alt=""><figcaption></figcaption></figure>

Complete the process of creating a storage space as shown in the interface:

**Fill in the Required Details:**

* **Name:** Enter a descriptive name for your storage space (e.g., "Amazon S3 & S3 Compatible 1").
* **Service Provider:** Select "S3 Compatible" from the dropdown menu.
* **Server Address:** Input the server address (s3-api.neevcloud.com).
* **Signature Version:** Choose the appropriate signature version (e.g., `v2`).
* **Access Key:** Enter your access key.
* **Secret Key:** Enter your secret key.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FLlBBrED4gly9LRUdnYBE%2Fimage.png?alt=media&#x26;token=bee3654c-bf5e-49c6-ad2a-7b4adfd14c84" alt=""><figcaption></figcaption></figure>

Now, back to the Backup & Restore or Backup/Sync section in your application interface.

Click on Create and then select New Backup Job.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FAS5AhOTZ8F216NHU8mPF%2Fimage.png?alt=media&#x26;token=b53a98a3-72be-435d-a255-17b8f0fdc9fa" alt=""><figcaption></figcaption></figure>

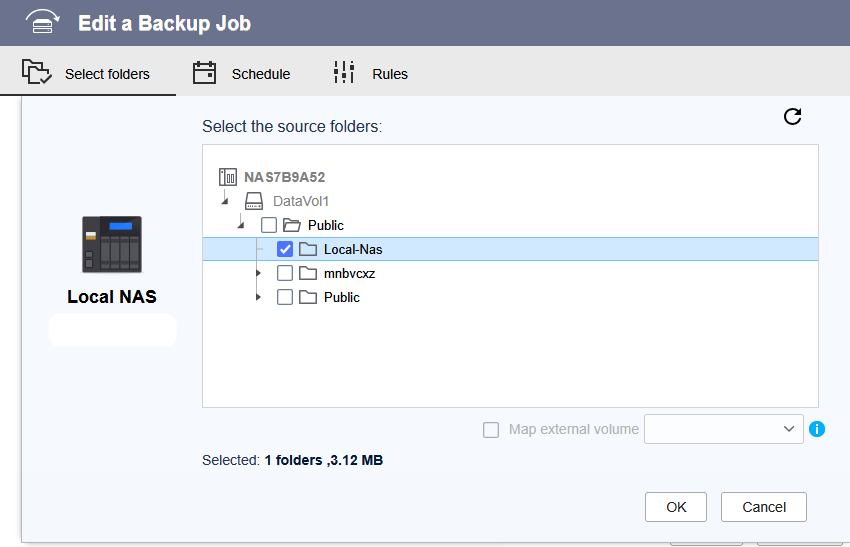

Choose the folders or files you wish to back up. When selecting a folder, all files and subfolders within it will be included automatically.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FmqLOimOmjHjmvyM1xYNK%2Fimage.png?alt=media&#x26;token=3bf5961f-932e-4423-b625-46059b3af3e8" alt=""><figcaption></figcaption></figure>

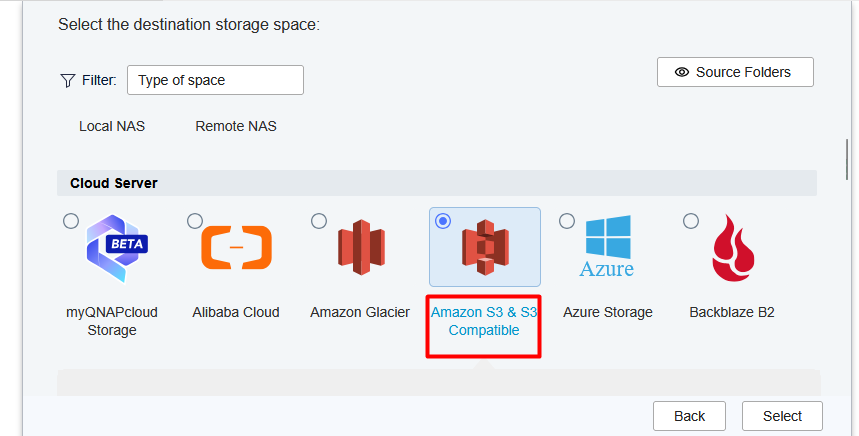

Select the storage space you previously configured (e.g., your S3-compatible storage). Click **Select** to confirm your choice.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2Fj5sRdszdhYmuqgpwOiyM%2Fimage.png?alt=media&#x26;token=d5f9e76d-d276-4e11-b912-b306936f0753" alt=""><figcaption></figcaption></figure>

While setting up a bucket on the Neevcloud Dashboard, specify and select the bucket name accordingly.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FCWe5NEgGJVVQVEXG0nXg%2Fimage.png?alt=media&#x26;token=bc78476d-67da-4d23-9775-f21439009d7e" alt=""><figcaption></figcaption></figure>

Now select the destination folder

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2F9yeROwUcCUCO32TK5bdu%2Fimage.png?alt=media&#x26;token=7df61df6-dadf-43c9-acf1-c7e4bee64ae6" alt=""><figcaption></figcaption></figure>

Verify the details, and then proceed to the next step by clicking Next.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FBKfC17pMbQpgf8IPOFdl%2Fimage.png?alt=media&#x26;token=80f6c951-e68d-4e13-8c00-98bf366d1e4d" alt=""><figcaption></figcaption></figure>

Set up your preferred schedule in the schedule section, and click 'Next' to continue.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FxlJTMJlC2cbohMPLiLMi%2Fimage.png?alt=media&#x26;token=7923094f-5bf2-48e5-b26f-56d9078fa5ac" alt=""><figcaption></figcaption></figure>

Configure the rules, such as enabling filters.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FM3eAT3nRKvqdhfJ69Pcb%2Fimage.png?alt=media&#x26;token=9aaa956b-64d9-4457-861b-cccdf681e8ba" alt=""><figcaption></figcaption></figure>

Carefully review the settings, and then click Create.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2F1aYFFXYp0tontI8jctDC%2Fimage.png?alt=media&#x26;token=208eaf08-a4ed-4f08-992a-bebc5c3effe1" alt=""><figcaption></figcaption></figure>

Backup is now successful.

<figure><img src="https://1876135298-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEC5NwtFshv6EATOemuUn%2Fuploads%2FvpkxddQ1uGEh0M1S8Qx7%2Fimage.png?alt=media&#x26;token=e8328055-df39-4b02-9a61-c21ee318e378" alt=""><figcaption></figcaption></figure>
